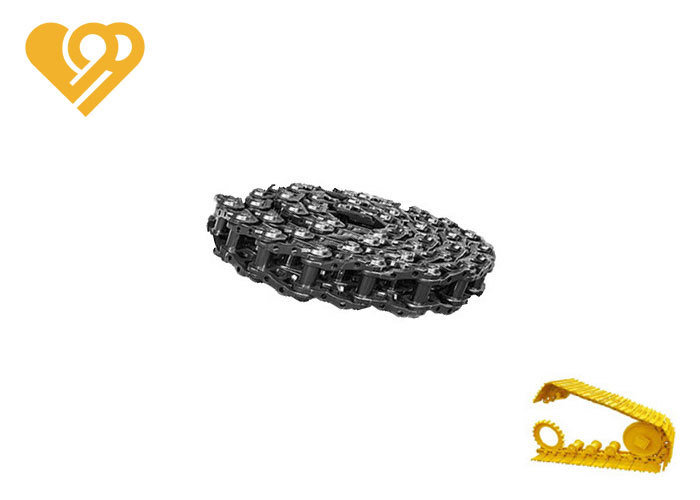

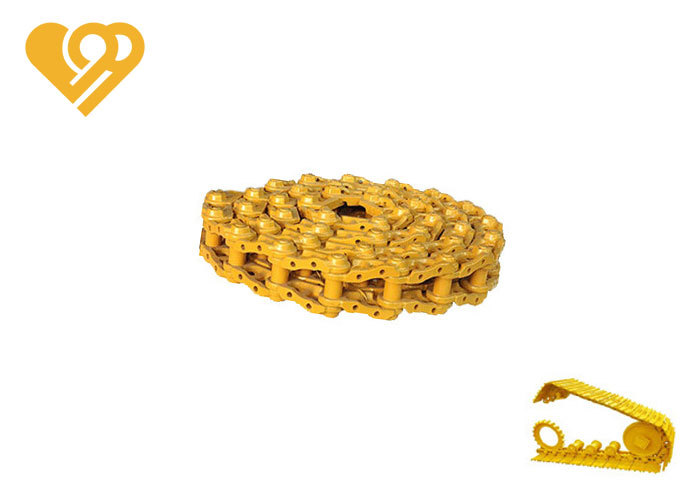

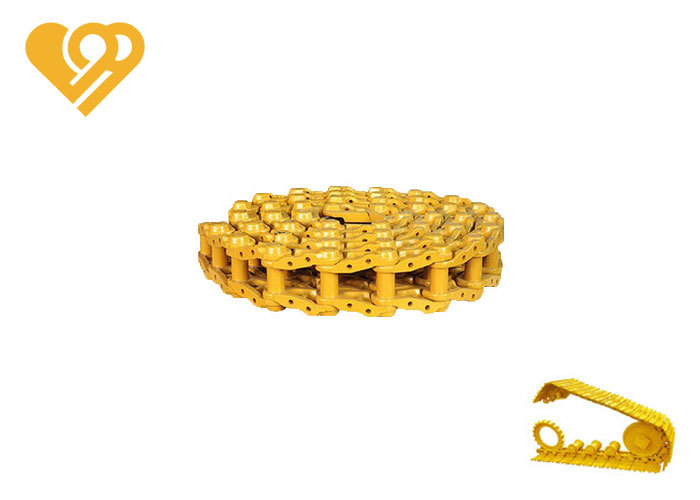

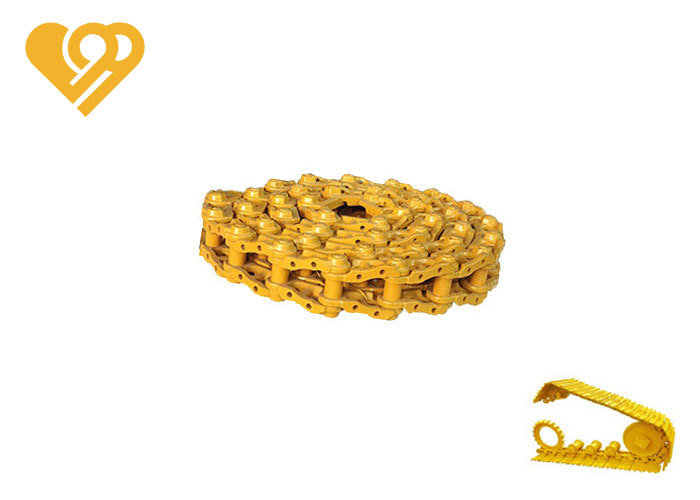

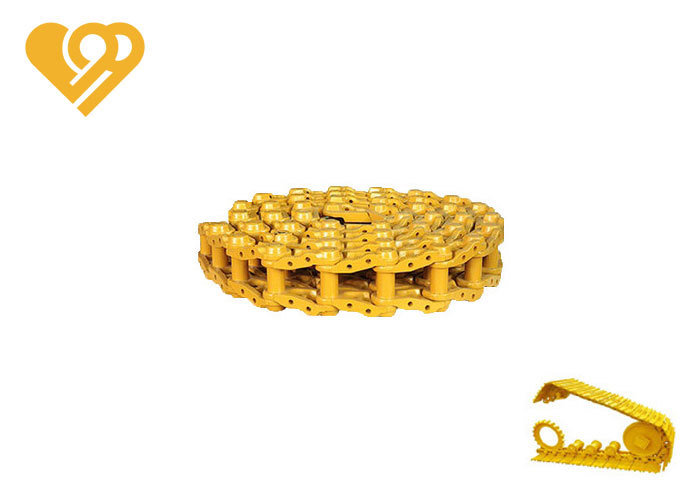

Heavy Duty Heat-Treatment Track Chain Link with 12-18 Months Warranty for Excavator and Bulldozer

商品の詳細:
起源の場所: 中国(本土)
ブランド名: YT
モデル番号: SH300
お支払配送条件:
最小注文数量: 1pcs
価格: negotiable
パッケージの詳細: エクスポートパッケージ
受渡し時間: 7〜30日
支払条件: L/C、T/T
供給の能力: 10000 PCS/月

詳細情報

材料: 40Mn2か35MnBH鋼鉄 技術: 鍛造材および熱処理
品質: 熱処理 HRC 40-55 価格期間: FOB/CFR/CIF/EXW
色: 黄色か黒い 保証時間: 12〜18ヶ月
生産能力: 100000 証明: ISO9001: 2000
ハイライト:

Heavy Duty Track Chain Link

,

Heat-Treatment Excavator Track Chain

,

12-18 Months Warranty Bulldozer Track Chain

製品の説明

SUMITOMO Heavy Duty Heat-Treatment Undercarriage Spare Parts OEM Services High Wear Resistance Track Chain Link for SH300
Track Link Features

Our production relies on advanced machining centers, as well as horizontal and vertical CNC machining, to carry out key processes including machining, drilling, threading, and milling. This approach guarantees both the quality and precision of individual components and the accuracy of assembly dimensions — ultimately working to maximize the service life of each component while minimizing the hourly production cost.

Our track links are crafted from 35 MNB forged special steel, further reinforced through structural engineering and advanced heat treatment processes; this combination ensures the product achieves maximum strength and abrasion resistance. Moreover, the self-lubricating system significantly extends the service life of track chain bearings.

Heavy Duty Heat-Treatment Track Chain Link with 12-18 Months Warranty for Excavator and Bulldozer 0
Main Dimensions of Installation
Heavy Duty Heat-Treatment Track Chain Link with 12-18 Months Warranty for Excavator and Bulldozer 1
Main Parameters
Suitable Model P A B C E F H K L
PC400-6 228.6 184 144 76.2 24.5 104 211 129 59
SH450 228.6 200 149.2 76.2 24.5 101.8 224.2 138 60
RH40E 260.35 234.9 184.1 76.2 27.5 132.9 274.9 160 75
EX700 260.35 234.9 184.1 76.2 27.5 132.9 274.9 152 73
CED1000-7 260.35 234.9 184.1 76.2 27.5 125 286 160 75
E365 260.35 234.9 184.1 76.2 28.3 132 278 152 73
EX1100/EX1200/E76117A 260.35 234.9 184.1 76.2 30.5 127 290 155 73

The models above are just for reference. We can supply more products as per your requirements. Please feel free to send us your inquiry or email if you have any specific needs.

Forging and Heat Treatment
Heavy Duty Heat-Treatment Track Chain Link with 12-18 Months Warranty for Excavator and Bulldozer 2
Hot Sale Products
Heavy Duty Heat-Treatment Track Chain Link with 12-18 Months Warranty for Excavator and Bulldozer 3
Our Advantages
  • World-class quality
  • Factory direct sales with competitive pricing
  • 35 years' experience in Excavator & Bulldozer spare parts manufacturing
  • Flexible payment terms including T/T, L/C
  • Fast delivery within 30 days after contract established
  • Professional sales team, quality inspection and report, maritime logistics guidance
  • Comprehensive after-sale services: video technical support, 24h online support
Customer Feedback
Heavy Duty Heat-Treatment Track Chain Link with 12-18 Months Warranty for Excavator and Bulldozer 4

Are you still troubled by lacking quality excavator track link assemblies? YinTai Parts is one of the professional manufacturers and suppliers of excavator track link assemblies in China, offering high-quality products for sale. With over 30 years of experience and extensive expertise, we guarantee the high quality and superior performance of our products.
