ホーム 製品トラック チェーン・リンクKOBELCO Heavy Duty SK30 Track Chain Link Assembly with Forging and Heat Treatment for Mini Excavator ISO9001 Certified

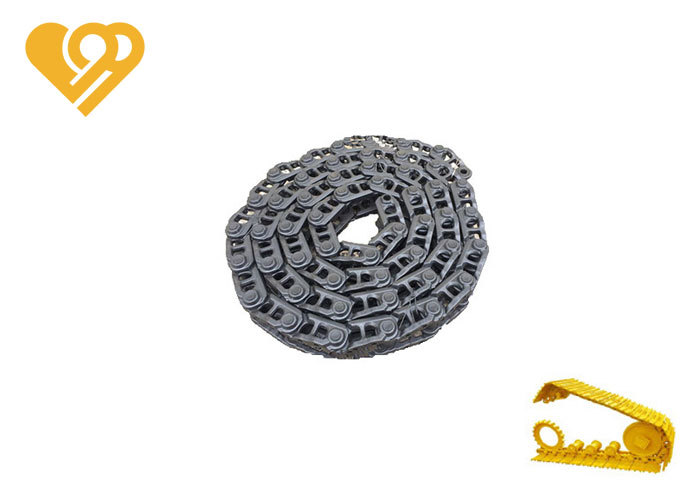

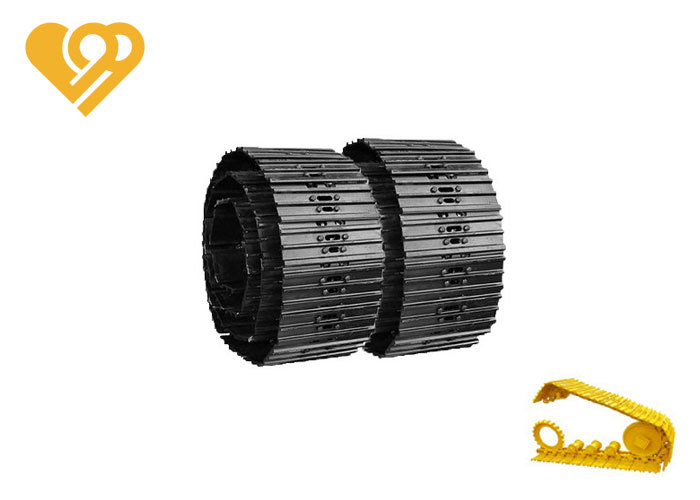

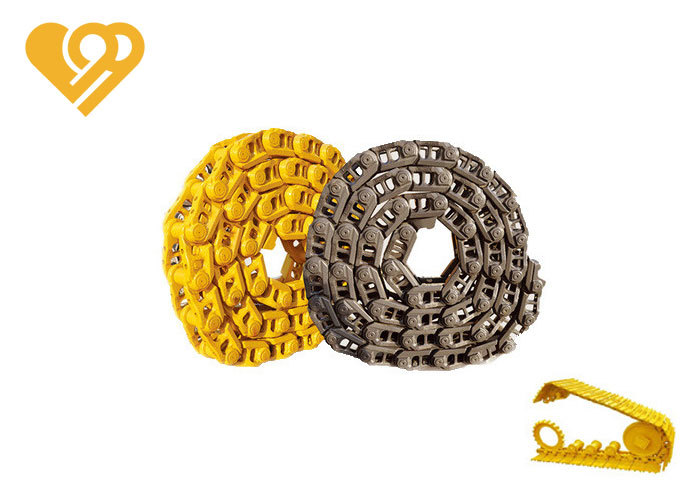

KOBELCO Heavy Duty SK30 Track Chain Link Assembly with Forging and Heat Treatment for Mini Excavator ISO9001 Certified
KOBELCO Heavy Duty SK30 Track Chain Link Assembly with Forging and Heat Treatment for Mini Excavator ISO9001 Certified KOBELCO Heavy Duty SK30 Track Chain Link Assembly with Forging and Heat Treatment for Mini Excavator ISO9001 Certified KOBELCO Heavy Duty SK30 Track Chain Link Assembly with Forging and Heat Treatment for Mini Excavator ISO9001 Certified

KOBELCO Heavy Duty SK30 Track Chain Link Assembly with Forging and Heat Treatment for Mini Excavator ISO9001 Certified

商品の詳細:
起源の場所: 中国（本土）
ブランド名: YT
モデル番号: SK30
お支払配送条件:
最小注文数量: 1pcs
価格: negotiable
パッケージの詳細: エクスポートパッケージ
受渡し時間: 7〜30日
支払条件: L/C、T/T
供給の能力: 10000 PCS/月
接触

詳細情報
材料: 40Mn2か35MnBH鋼鉄 技術: 鍛造材および熱処理
品質: 熱処理 HRC 40-55 価格期間: FOB/CFR/CIF/EXW
色: 黄色か黒い 保証時間: 12〜18ヶ月
アプリケーション: ミニ掘削機 証明: ISO9001: 2000
ハイライト:

ISO9001 Certified Track Chain Link

,

Forging and Heat Treatment Track Link Assembly

,

Mini Excavator Undercarriage Spare Parts

製品の説明

KOBELCO Undercarriage Spare Parts Heavy Duty SK30 Track Chain Link Assembly
Premium quality undercarriage spare parts with 12-18 month warranty period.
Track Link Advantages & Features
Our manufacturing process utilizes advanced machining centers, including horizontal and vertical CNC machining, to ensure:
  • Precision machining, drilling, threading, and milling operations
  • Exceptional component quality and dimensional accuracy
  • Maximized component lifespan and minimized production cost per hour
Constructed from 35 MNB forged special steel with:
  • Advanced structure technology and heat treatment processes
  • Enhanced strength and abrasion resistance
  • Self-lubricated system for extended track chain bearing service life
KOBELCO Heavy Duty SK30 Track Chain Link Assembly with Forging and Heat Treatment for Mini Excavator ISO9001 Certified 0
Design Specifications & Installation Dimensions
KOBELCO Heavy Duty SK30 Track Chain Link Assembly with Forging and Heat Treatment for Mini Excavator ISO9001 Certified 1
Main Parameters
P A B C E F H K L Suitable Model
101.6 65 65 22 10.5 45 86 63 26 SK025/SK30/SK32
101.6 52 52 22 10.5 32 73 65 28 PC20
101.6 55 55 22 12.5 35 77 70 30 YC35
101.6 55 55 22 10.5 34 72 61 29.5 TM20
135 99 72 43.2 12.5 45 105 75 35 PC60-3/5/DBC8060
135 99 72 43.2 12.5 48 108 75 35 JV65-7/YC60/SWE
The models above are for reference only. We can supply additional products based on your requirements. Please contact us with your specific needs.
Forging and Heat Treatment Process
KOBELCO Heavy Duty SK30 Track Chain Link Assembly with Forging and Heat Treatment for Mini Excavator ISO9001 Certified 2
Our Product Advantages
  • World-class manufacturing quality standards
  • Factory-direct pricing with competitive rates
  • 35 years of experience in excavator and bulldozer spare parts production
  • Flexible payment options including T/T and L/C
  • Fast delivery within 30 days after contract confirmation
  • Professional sales team with quality inspection reports and logistics support
  • Comprehensive after-sales services including video technical support and 24/7 online assistance
As a professional manufacturer with over 30 years of experience, YinTai Parts specializes in high-performance excavator track link assemblies. Our products combine exceptional durability with cost-effective operation for demanding industrial applications.
