Hitachi EX60-2 Medium Sized Track Carrier Rollers with 12-18 Months Warranty and Forging/Casting Technique
Hitachi EX60-2 Medium Sized Track Carrier Rollers with 12-18 Months Warranty and Forging/Casting Technique Hitachi EX60-2 Medium Sized Track Carrier Rollers with 12-18 Months Warranty and Forging/Casting Technique Hitachi EX60-2 Medium Sized Track Carrier Rollers with 12-18 Months Warranty and Forging/Casting Technique

Hitachi EX60-2 Medium Sized Track Carrier Rollers with 12-18 Months Warranty and Forging/Casting Technique

商品の詳細:
起源の場所: 中国（本土）
ブランド名: YT
モデル番号: EX60-2
お支払配送条件:
最小注文数量: 1pcs
価格: negotiable
パッケージの詳細: 標準のエクスポートパッケージ
受渡し時間: 7〜30日
支払条件: L/C、T/T
供給の能力: 10000 PCS/月
接触

詳細情報
材料: 40mn2、40mnb 、50mn 技術: 鍛造/キャスト
品質: 熱処理 HRC 52-56 色: 黄色か黒色か お客様の要求
保証時間: 12〜18ヶ月 トランスポートパッケージ: 木製パレット
HSコード: 8431499000 仕様: 中くらいの大きさ
ハイライト:

12-18 Months Warranty Track Carrier Rollers

,

Forging/Casting Technique Undercarriage Rollers

,

Medium Sized Excavator Carrier Rollers

製品の説明

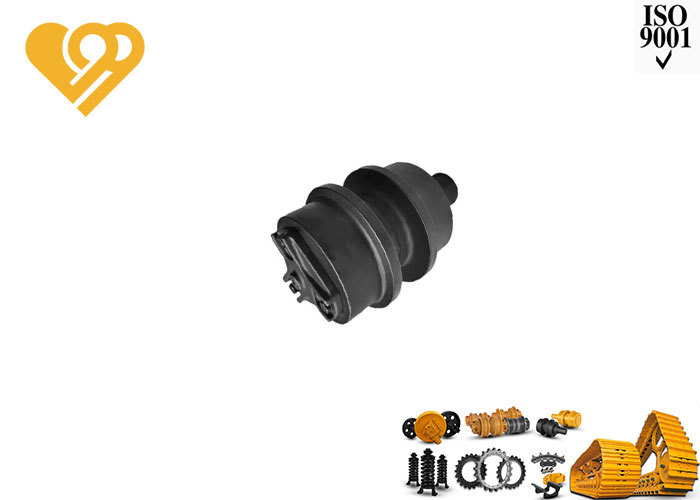

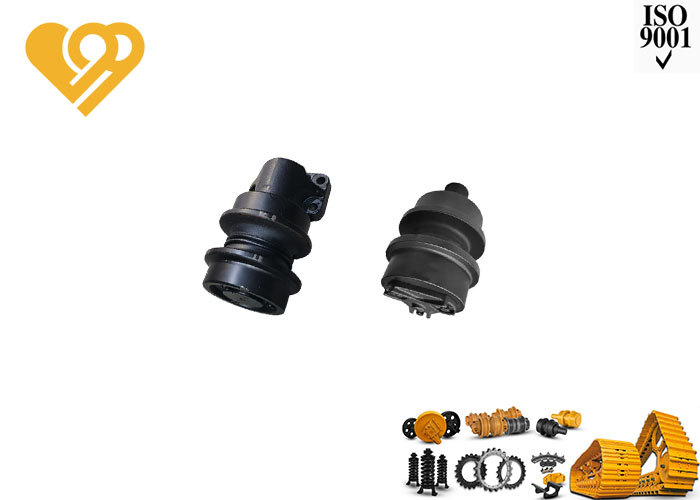

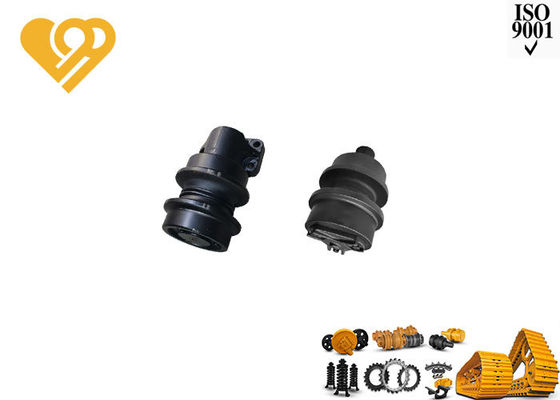

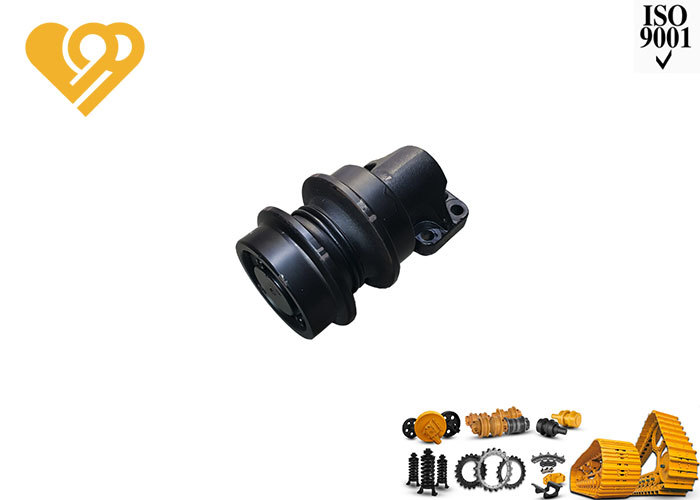

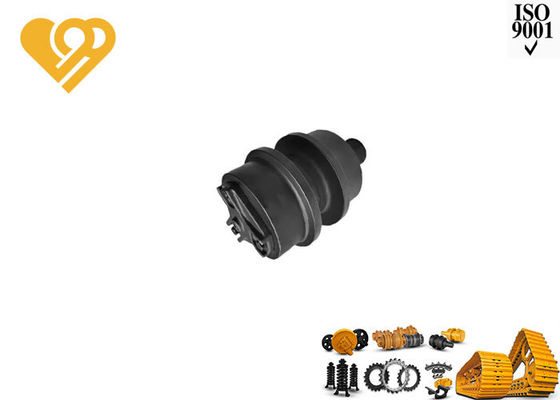

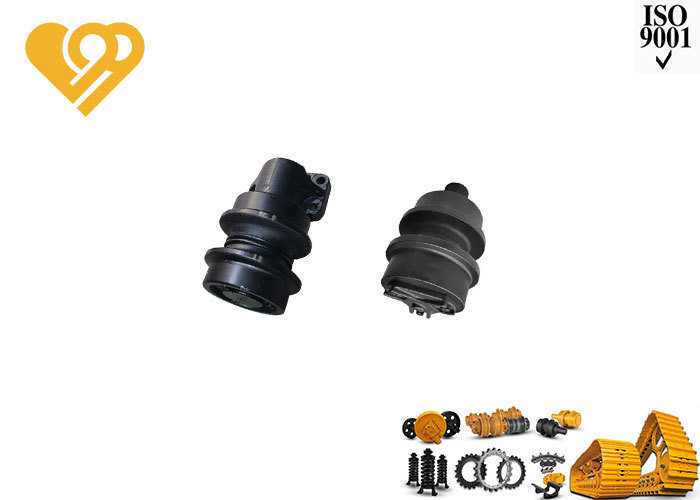

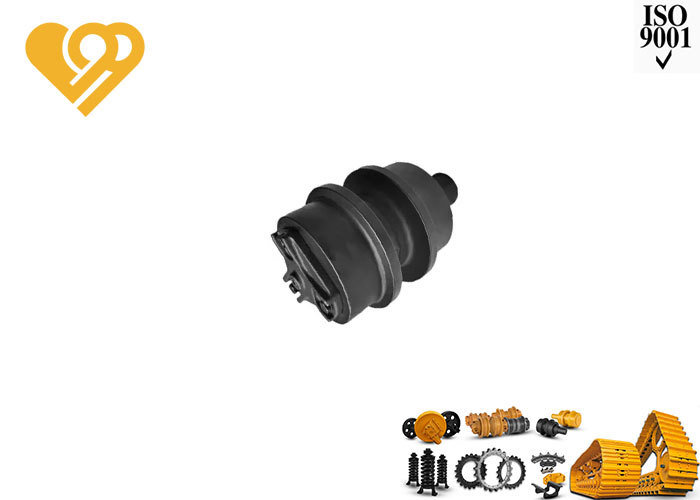

Hitachi Construction Machinery Mini Undercarriage Component Parts EX60-2 Track Carrier Rollers
What is a Roller?
  • The track roller supports the conveyor belt and material weight, accounting for 35% of total conveyor cost and generating over 70% of resistance, making roller quality critically important.
  • Available in materials 40Mn2, 40MnB, or 50Mn depending on working conditions. Precision forged and heat-treated to achieve surface hardness of HRC52-6 with hardened layer depth of 7-10mm (HRC45) for durability, impact resistance, and wear resistance.
  • High-quality floating seals and lubrication system adapt to temperatures from -45℃ to 120℃, requiring no maintenance under severe conditions.
Carrier Rollers Features
  • Quench-tempering processes ensure excellent mechanical properties, high strength, and superior wear resistance.
  • Surface hardness HRC40-55 reduces wear and extends service life.
  • Precision engineering, careful heat-treatment, and lifetime sealing system guarantee long operational life.
  • Forged deep hardening steel shells resist bell mouthing, with all rollers carrying warranty.
Main Dimensions of Installation
Hitachi EX60-2 Medium Sized Track Carrier Rollers with 12-18 Months Warranty and Forging/Casting Technique 0
Main Parameters
Brand Model A B E G M L
HITACHI EX30 108 85 112 172
HITACHI EX60-1 145 120 152 248 218 15
HITACHI EX60-2/3 145 120 152 248 216 15
HITACHI EX60-5 135 112 140 227 197 15
HITACHI EX100 160 135 184 285 250 17.5
HITACHI EX120 160 135 184 285 250 17.5
*Note: The models above are for reference only. We can supply additional models upon request. Please contact us with your specific requirements.
Our Advantages
  • World-class quality standards
  • Factory-direct pricing
  • 35 years experience in excavator and bulldozer parts manufacturing
  • Flexible payment terms (T/T, L/C)
  • Fast delivery within 30 days
  • Professional sales team and quality inspection
  • Comprehensive after-sales support including video technical assistance and 24/7 online support
Hot Sale Parts
Hitachi EX60-2 Medium Sized Track Carrier Rollers with 12-18 Months Warranty and Forging/Casting Technique 1
